Features
-

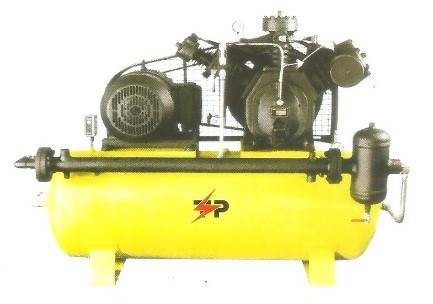

Multi Stage High Pressure Compressors are designed for high pressure operations upto 70kg/cm2
-
These Compressore frames have large oil capacity to assure low bearing temperatures & adequate lubrication for long periods.These compessors have centrifugal unlodader to prevent starting underload.
-
These compressore are ideal for a variety applications in different industries such as air blast, diesel generator starting b compressed air, circuit breaking, valve & system checking, laboratory test work etc.
Technical Specification
Multi stage High Pressure Compressors
|
MODEL |
NO. OF CYLINDER |
PISTON DISPLACEMENT |
MAXIMUM PRESSURE |
MOTOR |
|
|
|
CFM |
M3/HR |
LPM |
PSIG |
KG/CM2 |
HP |
KW |
|
281 |
2 |
7.40 |
12.56 |
209 |
500 |
35.15 |
3.00 |
2.20 |
|
281 |
2 |
10.80 |
18.33 |
305 |
500 |
35.15 |
5.00 |
3.70 |
|
57T4 |
2 |
13.10 |
22.23 |
371 |
1000 |
70.30 |
5.00 |
3.70 |
|
57T2 |
2 |
24.75 |
42.00 |
700 |
500 |
35.15 |
7.50 |
5.50 |
|
57T2 |
2 |
36.00 |
61.09 |
1019 |
500 |
35.15 |
12.50 |
9.30 |
|
65T2 |
2 |
41.25 |
70.00 |
1167 |
500 |
35.15 |
15.00 |
11.00 |
|
65T2 |
3 |
49.50 |
84.00 |
1401 |
1000 |
70.30 |
20.00 |
15.00 |
|
